Product Details:
Payment & Shipping Terms:
|
| Color: | Blue | Voltage: | 380V 50hz |
|---|---|---|---|
| Power: | 37kw/40hp Air Compressor | Application: | Compress Air |
| Type: | Rotary Type Air Compressor | ||
| Highlight: | screw drive air compressor,rotary screw air compressor |
||

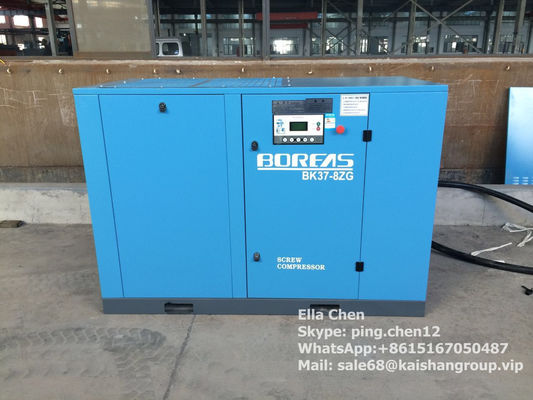

Kaishan brand BOREAS series stationary screw air compressor
Main Features of BK series air screw compressors
Kaishan offers complete, high quality, low cost LG series rotary screw air compressors.
They come configured as belt driven (7.5kw -18.5kw), optional gear driven, direct driven(22kw –200kw) with discharge pressures from 0.7Mpa to 1.3Mpa. Water-cooled and air-cooled units are available. PLC is a common feature for the LG series and is included in VSD packages.
And can variable frequency.
| Model | Capacity (FDA) | Working pressure | Power | Net weight | Dimension |
| (M3/min) | (MPa/Bar) | (KW/HP) | (KG) | (mm) | |
| BK11-8 | 1.7 | 0.8/8 | 11/15 | 370 | 1020*820*1235 |
| BK11-10 | 1.5 | 1.0/10 | |||
| BK11-13 | 1.2 | 1.3/13 | |||
| BK15-8 | 2.4 | 0.8/8 | 15/20 | 380 | 1020*820*1235 |
| BK15-10 | 2.2 | 1.0/10 | |||
| BK15-13 | 1.7 | 1.3/13 | |||
| BK18-8 | 3 | 0.8/8 | 18/25 | 500 | 1080*880*1235 |
| BK18-10 | 2.7 | 1.0/10 | |||
| BK18-13 | 2.3 | 1.3/13 | |||
| BK22-8 | 3.6 | 0.8/8 | 22/30 | 540 | 1080*880*1235 |
| BK22-10 | 3.2 | 1.0/10 | |||
| BK22-13 | 2.7 | 1.3/13 | |||
| BK30-8 | 5 | 0.8/8 | 30/40 | 650 | 1120*930*1290 |
| BK30-10 | 4.4 | 1.0/10 | |||
| BK30-13 | 3.6 | 1.3/13 | |||
| BK37-8 | 6 | 0.8/8 | 37/50 | 730 | 1240*1030*1435 |
| BK37-10 | 5.5 | 1.0/10 | |||
| BK37-13 | 4.6 | 1.3/13 | |||
| BK45-8 | 7.1 | 0.8/8 | 45/60 | 820 | 1240*1030*1595 |
| BK45-10 | 6.5 | 1.0/10 | |||
| BK45-13 | 5.6 | 1.3/13 | |||
| BK55-8 | 9.5 | 0.8/8 | 55/75 | 1200 | 1540*1200*1470 |
| BK55-10 | 8.5 | 1.0/10 | |||
| BK55-13 | 7.4 | 1.3/13 |
Economic operation
The system adopts stepless capacity regulation of 0-100%. When the gas consumption is reduced, exhaust volume decreases, the motor current decreases at the same time; when no gas, air compressor run empty, empty for too long the automatic shutdown. When the gas consumption increases, the resumption of heavy truck. Energy-saving effect is optimal.
Good environment adaptability
Design of cooling system of extraordinary, especially suitable for high temperature, high humidity environment in asia. Vibration and noise reduction measures excellent, make Kaishan brand screw air compressor installation without special foundation, just leave the minimum ventilation and maintenance space, can arrange your compressor.
|
Our anvantages
|
High quality |
| Reasonable price | |
| Strict delivery time | |
| Good after-sales service | |
| Profession maker for 18 years | |
| Strict quality control | |
| Streamline production makes each node be well controlled thus to guarantee more reliable quality. | |
| Re-create the industry revolution of the air compresssor , | |
| Low after-sales maintenance cost and excellent promptness in the industry, | |
| We not only provide air systems, but also break the industry monopoly to provide the users with profits |
Our small low price electric motor driven screw air compressor for sale now.
Power range: 11KW, 15KW, 18KW, 22KW, 30KW, 37KW, 45KW, 55KW, 75KW, 110KW.
Working pressure: 8bar, 10bar and 13bar
The products provided by us is of 1 year warranty, and on-line service will be supplied by us in time whenever you have any problem or question about the products you want to purchase or have purchased from us.
About Kaishan group
1- Established in 1990 ,Specialized in this line more than 20 years.
2- National Free-inspection Product
3-Have advanced machining centers, automatic production line shape and heat treatmentequipment etc 500 sets from the United Kingdom, United States, Japan, Germany.
4-Exported to Australia/ Mongolia/ Japan/ South-Africa etc.
